Hydraut HSP/HP - A10V(S)O31 Design

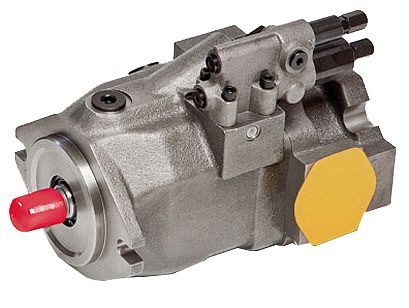

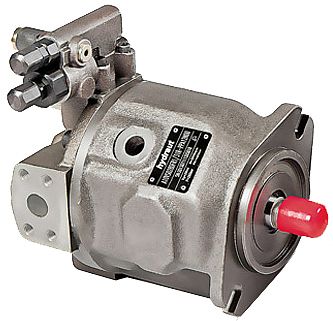

Axial piston pump HSP in swashplate design is used for hydraulic transmissions in open loop circuits.
By adjusting the position of the swashplate, it is possible to smoothly vary the flow.

FEATURES:

- Sizes from 18cc to 140cc.
- Axial piston swashplate design.
- Open circuits.
- Nominal pressure: 280 bar.
- Peak pressure: 350 bar.
- Rear and side ported.
- Thru drive auxiliary mounting flange.
- Suitable for industrial and mobile applications.
- Low noise levels.
- Controllers available: Pressure, Pressure/Flow, Pressure/Flow/Power.



Hydraut Cross reference Geom.displ. (cm³/ot) Max. rotation (ot./min)
HSP/HP-10V-18 A10VSO/A10VO-18 18 3000
HSP/HP-10V-28 A10VSO/A10VO-28 28 3000
HSP/HP-10V-45 A10VSO/A10VO-45 45 2600
HSP/HP-10V-63 A10VSO/A10VO-63 63 2700
HSP/HP-10V-71 A10VSO/A10VO-71 71 2200
HSP/HP-10V-100 A10VSO/A10VO-100 100 2000
HSP/HP-10V-140 A10VSO/A10VO-140 140 1800

ADVANTAGES:

- Available ready to be shipped industrial version (interchangeable to series A10VSO) and mobile (interchangeable to series A10VO).
- Cross reference with Caterpillar and Komatsu OEM codes.
- Spare parts totally interchangeable to Rexroth A10VO pumps.
- Short delivery time.

More information in attached catalogue.
